Telemetry

Electronics

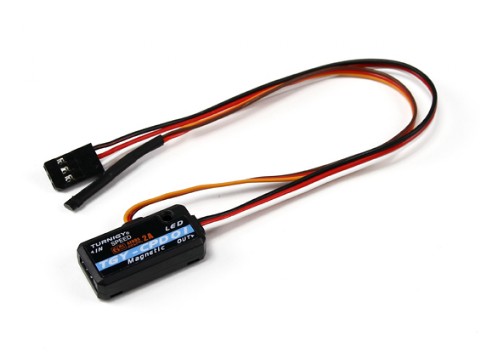

Turnigy TGY-CPD01 Magnetic RPM Sensor
Features:

• Compact sensor head
• Futaba style connector
• Magnetic pick up sensor and two micro sized magnets
• Works with TGY- i10 and i6 transmitters and TGY-iA10 and i6 V2 receivers

Specs:

RPM Range: 0~60000 rpm
Input Voltage: 4.0-6.5V
Working Current: 9mA
Receiver lead length: 194mm
Sensor lead length: 200mm
Size: 30 x 15 x 8.3mm
Weight: 7g (inc leads and magnets)

Number: 1

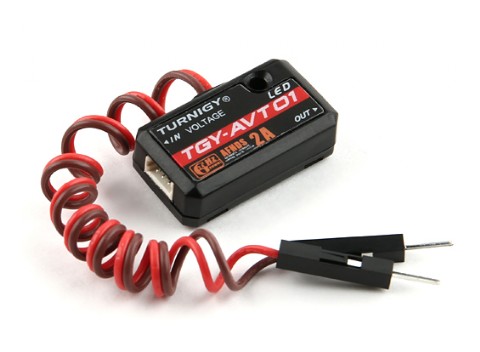

Turnigy TGY-AVT01 Voltage Sensor
Features:

• Small compact sensor
• Micro Molex input and output connectors
• Great for monitoring battery voltage, no need to set timers anymore
• Works with TGY-i6 transmitter and TGY-iA10 receiver

Specs:

Voltage Range: 0-30V DC
Input Voltage: 4.0-6.5V
Working Current: 4.1mA
Size: 24.4x14x14.8mm
Weight: 3.5g

Number: 1

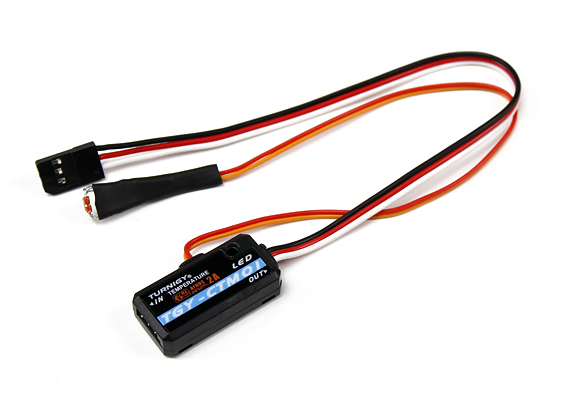

Turnigy TGY-CTM01 Temperature Sensor
Features:

• Small compact sensor
• Futaba style input and output connectors
• Great for monitoring motor, battery, or ESC temperature
• Works with TGY- i10 and i6 transmitters and TGY-iA10 and i6 V2 receivers

Specs:

RPM Range: 0~250°C
Accuracy: - 40~100°C    +/-1°C
                100~150°C    +/-2°C
                150~250°C    +/-5°C
Input Voltage: 4.0-6.5V
Working Current: 5mA
Receiver lead length: 194mm
Sensor lead length: 200mm
Size: 30 x 15 x 8.3mm
Weight: 6.5g (inc leads and sensor)

Number: 1
