Radio & Receivers

Electronics
Number: 1

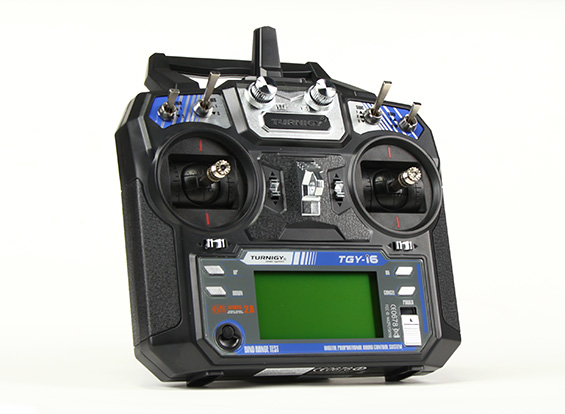

Turnigy TGY-i6 AFHDS Transmitter
Model: Heli/airplane
Frequency: 2.4GHz ISM Frequency Range
Modulation: GFSK
Spread Spectrum Mode: AFHDS 2A and AFHDS
Band: 142
Number of Frequency Channels: 20
Output Power: <=20dbm
Working Current: <=100mA
Working Voltage: 1.5v x 4 AA
Dimensions: 174x89x190mm
Weight: 392g
Resolution: 1024 bit
Stick Mode: Mode 2 (Throttle Left)

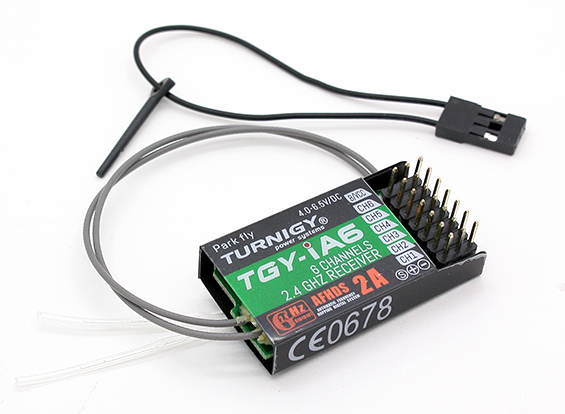

Turnigy TGY-i6 Receiver 6CH


Channel: 6
Frequency: 2.4g ISM Frequency Range
Power: 4.5V~6.6V/<30ma
Net Weight: 6.4g
Dimensions: 40.4x21.1x7.35mm

Number: 2

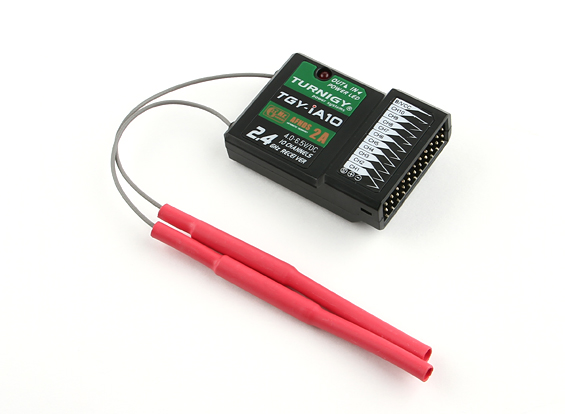

Turnigy iA10 Receiver 10CH


Channel: 10
Frequency: 2.4g ISM Frequency Range
RF Power: < 20dBM
Power: 4.0V~6.5V
Working Current: 240mA
Net Weight: 30g
Dimensions: 47x33x15mm
Range: > 500 meters

Number: 1

Number: 1

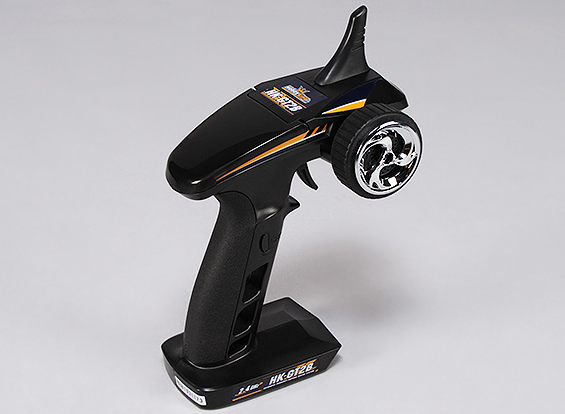

HobbyKing HK-GT2B 3CH 2.4 GHz Transmitter


Model: Car/Boat
RF Power: 20dBm (100mW) max
Modulation: GFSK
System Type: AFHDS
Sensitivity: 1024
Low Voltage Warning: Yes
Charge Port: Yes (USB- charge cable included)
Power: 3.7V 800mAh li-ion (included)
Weight: 270g

HobbyKing HK-GT2B Receiver


Model: Car/Boat
RF Receiver Sensitivity: -105dBm
Modulation: GFSK
System Type: AFHDS
Sensitivity: 1024
Failsafe: Yes
Power Port: Yes (VCC)
Power: 4.5~6.5 VDC
Weight: 5g
Antenna Length: 26mm
Dimensions: 37.6 x 22.3 x 13mm

Number: 1

Number: 1

Modelcraft Elektro GT2 2.4 GHz 2CH Transmitter


Model: Car/Boat
Frequency range:  2.4 GHz
Number of channels:  2
RF Power: 20dBm (100mW) max
Modulation: GFSK
System Type: AFHDS
Sensitivity: 1024
Low Voltage Warning: Yes
Charge Port: Yes
Power: 9.6 - 12 V/DC using 8 Mignon batteries or rechargeable batteries
Weight including rechargeable battery: Approx. 534 g

Modelcraft FR-3C Receiver 3CH


Frequency range: 2.4 GHz
Number of channels: 3
Connector system: Futaba/JR
Supply voltage: 4 - 8.4 V/DC using 4 mignon batteries or rechargeable batteries
(or BEC)
Dimensions (W x H x D): Approx. 37.5 x 22.5 x 13 mm
Weight: Approx. 6 g

Number: 1
