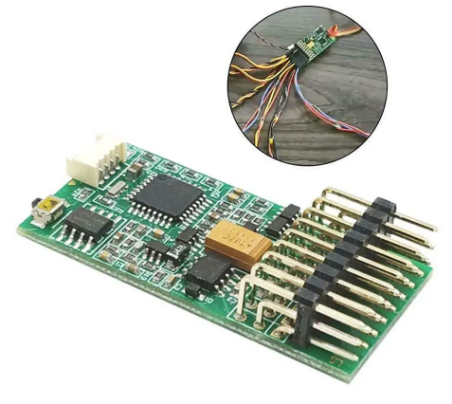

DasMikro TBS Mini Programmable Sound and Light Control Unit for RC Model Car Parts
Description:
This sound unit is developed for all kinds of RC controlled models, including trucks, crawlers, tanks, airplanes...
Features:
Fully customer programmable, you could load your own sounds
Large sound library of original recordings is available
Sound quality at 22KHz
Capability to play two sounds simultaneously (engine and one special sound)
16Mbit sound memory, enough for 93sec. of sound recordings at 22KHz
Internal 1,2W amplifier at 8 Ohm speakers
Remote volume control (depending on control mode)
Up to 6 electronic switching outputs
Two servo signal outputs
All connections made by plugs, no solder work necessary
Fully assembled in SMD technology (no heavy, vibration sensitive components)
Speed signal derived from the receiver. This allows combination with brushless or brushed motors.
Horizontal plug connections, this allows total electric isolation by shrinking plastic tube.
Technical Spec:
- Supply voltage: 3.5~12V (from receiver)
- Internal amplifier: 1.2W at 8 Ohm and 5V supply
- Switching outputs: Minus switching, maximum at 12V/0.5A each
- Product Dimensions: 55x25x10mm
- Product Weight: About 6g

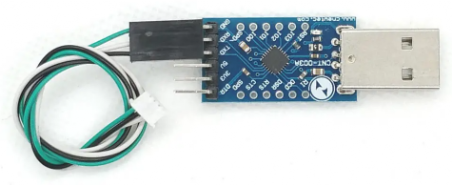

DasMikro Micro USB Programming Cable for TBS Mini Sound Light Control Unit
Description:
- Item Brand:DasMikro
- Item Name:USB Programming Cable
- Material:ABS and electronic components
- Color:As the picture shown
- Product Weight:About 5g
- For:TBS Mini Sound Light Control Unit
